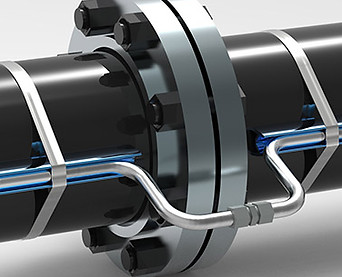

QMax FPX (Freeze Protection) is a continuous steam tracing standoff designed specifically for pipeline freeze protection. The

QMax FPX innovative design mitigates the heat transfer of regular stainless steel or copper tube tracer and offers guaranteed results. Most steam tracing standoffs are poorly designed or not designed at all. Tubing often touches the pipe which creates hot spots that can lead to internal corrosion.



QMax FPX continuous steam tracing standoff mitigates hot spots

while offering predictable process temperatures.

QMax Industries, Inc. models the thermal characteristics of each application so the results of the QMax FPX system are guaranteed. The profile of QMax FPX is customized to each application to ensure the best results.



Please fill out our QMax FPX Evaluation Questionnaire and send it to your sales representative for individual attention. We treat every application uniquely to offer the right solution for you.



Watch Our Video To Learn The Benefits Of QMax FPX

QMax FPX Technical Specifications:

  • Material: 6063-T5 Aluminum

  • Thermal Conductivity: ~1450 BTU/hr ft^2 F (~209 W/m-K)

  • Maximum Temperature Limitation: 750 F (399 C)

  • Weight: ~ 0.08 lb/ft (without tubing or Banding)

  • Standard tube sizes: 3/8 inch & 1/2 inch
